Disegnare un albero – 3D

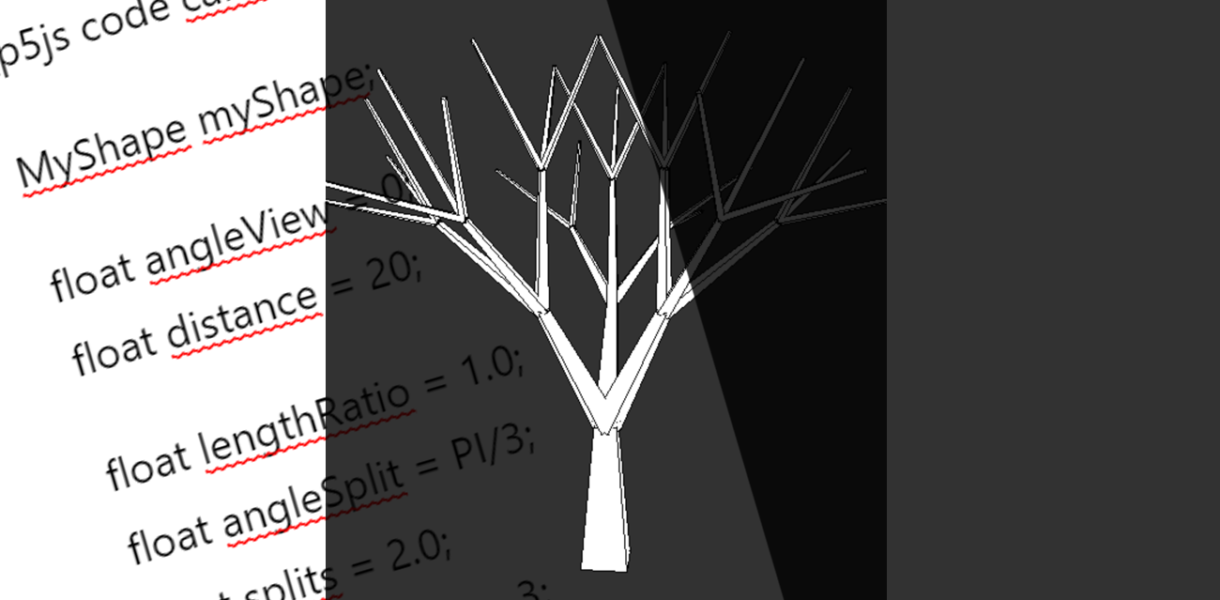

tree3d E se la regola della crescita dell’albero indicata da Munari la potessimo vedere in 3D? Clicca sul rettangolo che ospita il nostro albero, poi gioca con i tasti 1,2,3,4,5,6 e vedi le varie fasi della composizione dell’albero. Utilizza le frecce sinistra e destra per far aprire i rami dell’albero e le frecce su e giù per aumentare e diminuire il numero dei rami.

show code

MyShape myShape;

float angleView = 0;
float distance = 20;

float lengthRatio = 1.0;
float angleSplit = PI/3;
float splits = 2.0;
int branchDepth = 3;

int startTime = 0;
float timeForLastFrame = 0;

void setup(){
size(500,700,P3D);
rectMode(CENTER);

myShape = new MyShape(0,0,0,0,0,0,10,30,0);
}

void draw(){
startTime = millis();

background(50);

translate(width/2,height*0.9);
scale(4);
rotateY(angleView);

myShape.drawIt();

angleView += 0.00005 * timeForLastFrame;

timeForLastFrame = millis() - startTime;
}

void keyPressed(){
if(key == CODED){
if(keyCode == UP){
splits++;
if(splits > 5){
splits = 5;
}
myShape = new MyShape(0,0,0,0,0,0,10,30,0);
}
else if(keyCode == DOWN){
splits--;
if(splits < 1){
splits = 1;
}
myShape = new MyShape(0,0,0,0,0,0,10,30,0);
}
else if(keyCode == LEFT){
angleSplit-= 0.05;
if(angleSplit < -PI/2){
angleSplit = -PI/2;
}
myShape.updateAngle(0,0,0);
}
else if(keyCode == RIGHT){
angleSplit+= 0.05;
if(angleSplit > PI/2){
angleSplit = PI/2;
}
myShape.updateAngle(0,0,0);
}

}
else if(key == '1'){
branchDepth = 0;
myShape = new MyShape(0,0,0,0,0,0,10,30,0);
}
else if(key == '2'){
branchDepth = 1;
myShape = new MyShape(0,0,0,0,0,0,10,30,0);
}
else if(key == '3'){
branchDepth = 2;
myShape = new MyShape(0,0,0,0,0,0,10,30,0);
}
else if(key == '4'){
branchDepth = 3;
myShape = new MyShape(0,0,0,0,0,0,10,30,0);
}
else if(key == '5'){
branchDepth = 4;
myShape = new MyShape(0,0,0,0,0,0,10,30,0);
}
else if(key == '6'){
branchDepth = 5;
myShape = new MyShape(0,0,0,0,0,0,10,30,0);
}
}
class MyShape{

MyShape[] nextShape;

PVector[] points = new PVector[8];

float baseWidth = 10;
float topWidth;
float tall = 30;

PVector startP;
PVector endP;

PVector xyzAngles;

int numberDepth;

MyShape(float tX, float tY, float tZ, float tAx, float tAy, float tAz, float tBW, float tT, int tN){

xyzAngles = new PVector(tAx,tAy,tAz);

numberDepth = tN;

startP = new PVector(tX, tY, tZ);
endP = new PVector(tX, tY - tT, tZ);

baseWidth = tBW;
topWidth = baseWidth / 2;
tall = tT;

points[0] = new PVector(-baseWidth/2.0, 0, baseWidth/2.0);
points[1] = new PVector( baseWidth/2.0, 0, baseWidth/2.0);
points[2] = new PVector( baseWidth/2.0, 0, -baseWidth/2.0);
points[3] = new PVector(-baseWidth/2.0, 0, -baseWidth/2.0);

points[4] = new PVector(-topWidth/2.0, -tall, topWidth/2.0);
points[5] = new PVector( topWidth/2.0, -tall, topWidth/2.0);
points[6] = new PVector( topWidth/2.0, -tall, -topWidth/2.0);
points[7] = new PVector(-topWidth/2.0, -tall, -topWidth/2.0);

if(numberDepth < branchDepth){
nextShape = new MyShape[(int)splits];

for(int i = 0; i < splits; i++){
float angleShift = i * ((2*PI) / splits);
float angleRot = (2*PI) / (splits * 2);
nextShape[i] = new MyShape(endP.x,endP.y,endP.z,angleSplit,angleRot,xyzAngles.z + angleShift,topWidth,tall*lengthRatio,numberDepth+1);
}
}

}

void updateAngle(float tAx, float tAy, float tAz){

xyzAngles = new PVector(tAx,tAy,tAz);

if(numberDepth < branchDepth){
for(int i = 0; i < splits; i++){
float angleShift = i * ((2*PI) / splits);
float angleRot = (2*PI) / (splits * 2);
nextShape[i].updateAngle(angleSplit,angleRot,xyzAngles.z + angleShift);
}
}
}

void drawIt(){
translate(startP.x,startP.y,startP.z);

rotateZ(xyzAngles.z);
rotateX(xyzAngles.x);

// bottom
beginShape();
vertex(points[0].x,points[0].y,points[0].z);
vertex(points[1].x,points[1].y,points[1].z);
vertex(points[2].x,points[2].y,points[2].z);
vertex(points[3].x,points[3].y,points[3].z);
endShape(CLOSE);

// top
beginShape();
vertex(points[4].x,points[4].y,points[4].z);
vertex(points[5].x,points[5].y,points[5].z);
vertex(points[6].x,points[6].y,points[6].z);
vertex(points[7].x,points[7].y,points[7].z);
endShape(CLOSE);

for(int i = 0; i < 4; i++){
rotateY((2*PI)/4);
// side
beginShape();
vertex(points[0].x,points[0].y,points[0].z);
vertex(points[4].x,points[4].y,points[4].z);
vertex(points[7].x,points[7].y,points[7].z);
vertex(points[3].x,points[3].y,points[3].z);
endShape(CLOSE);
}

float temp = map(mouseX,0,width,0,4);

//rotateY(map(mouseX,0,width,0,2*PI)); // control twist here
rotateY(xyzAngles.y);
translate(0,-tall,-tall * (numberDepth+1));

rotateX(-PI/2);

if(numberDepth < branchDepth){
for(int i = 0; i < nextShape.length; i++){
if(nextShape[i] != null){
nextShape[i].drawIt();
}
}
}

rotateX(PI/2);

translate(0,tall,tall* (numberDepth+1));

rotateY(-xyzAngles.y);
//rotateY(-map(mouseX,0,width,0,2*PI)); // control twist here

rotateX(-xyzAngles.x);
rotateZ(-xyzAngles.z);

translate(-startP.x,-startP.y,-startP.z);

}
}
"Interactive Fractal Tree" by David King, licensed under Creative Commons Attribution-Share Alike 3.0 and GNU GPL license. Work: http://openprocessing.org/visuals/?visualID= 152843
